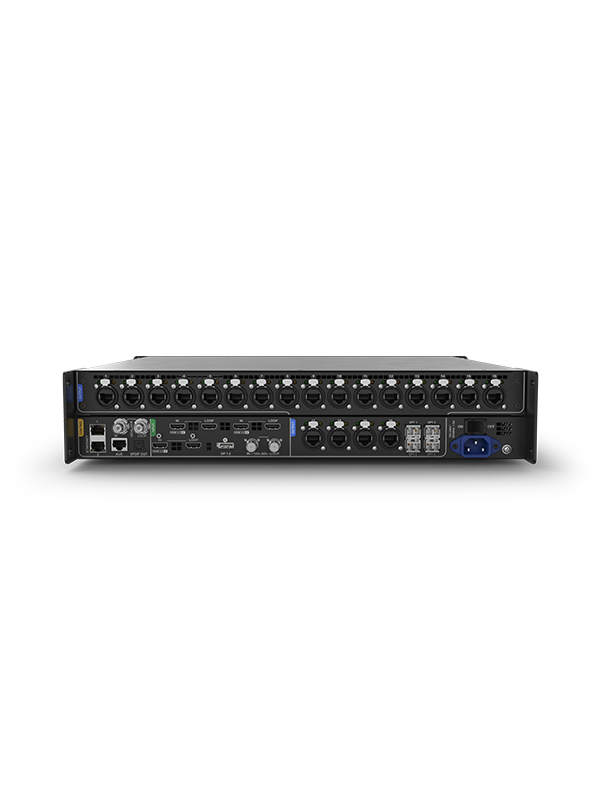

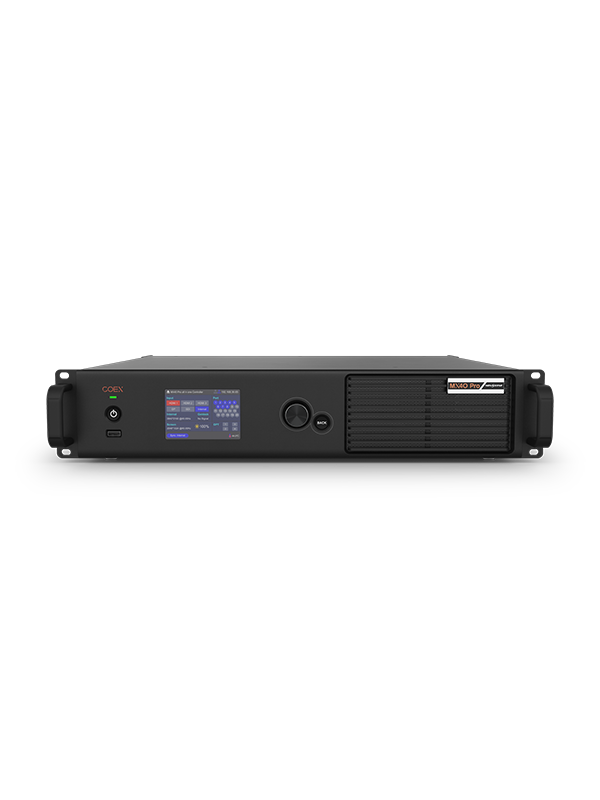

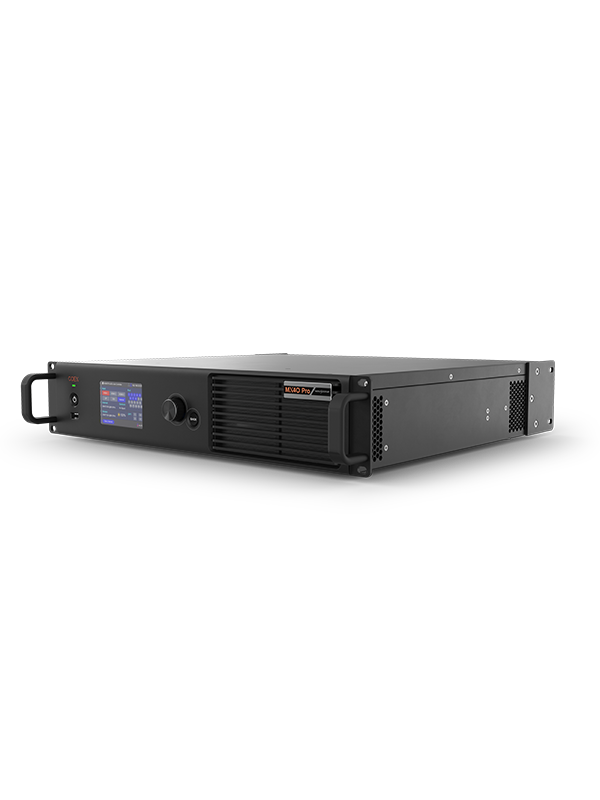

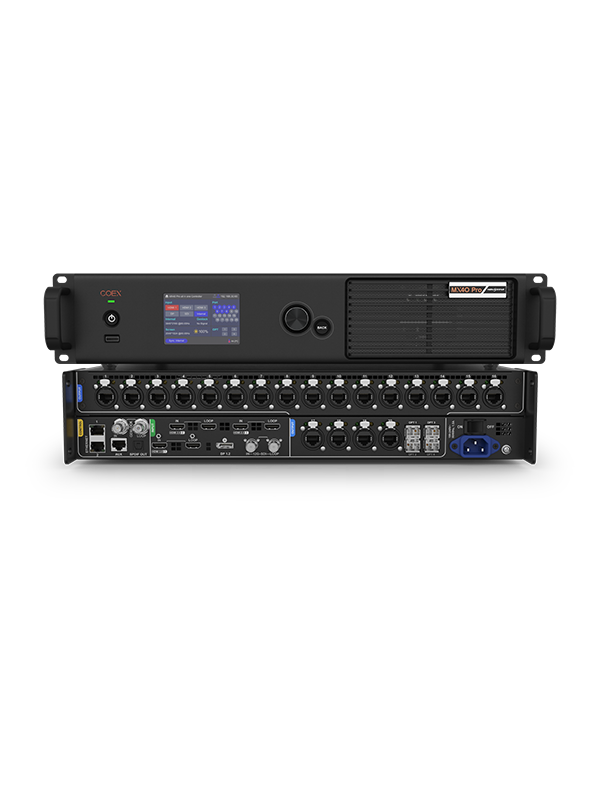

Chauvet NovaStar MX40 Pro

NovaStar MX40 Pro is an all-in-one LED display controller that integrates video processing and control in a high-performance solution for the most demanding live and on-camera applications. Its powerful VMP display control software brings design, management and monitoring into one intuitive platform. Pair with REM video panels to achieve a fast, low latency system offering a wide color gamut, high bit depths, precise color adjustment, adaptable frame rates and realistic immersion ideal for virtual production and broadcast environments, as well as offering 12G SDI and Fiber long-distance transmission capabilities essential for the world of events and touring.

Features

  • Inputs: 3x HDMI 2.0 (loop), 1x DP 1.2, 1x 12G-SDI (loop); up to 4096x2160@60Hz, 12-bit color.
  • Outputs: 20x Gigabit Ethernet (up to 9M pixels), 4x 10G optical ports, SPDIF audio; Genlock sync.
  • Processing: HDR10, low latency (<1ms), XR functions, LED Image Booster 2.0, Dynamic Booster, full grayscale calibration, 3D support.
  • Control: VMP software, 2x Ethernet ports, AUX RS232; 2U rackmount (482.6 x 467 x 94.2mm, 7.5kg).

Downloads

Datasheet
