Chauvet Rogue R1E Spot

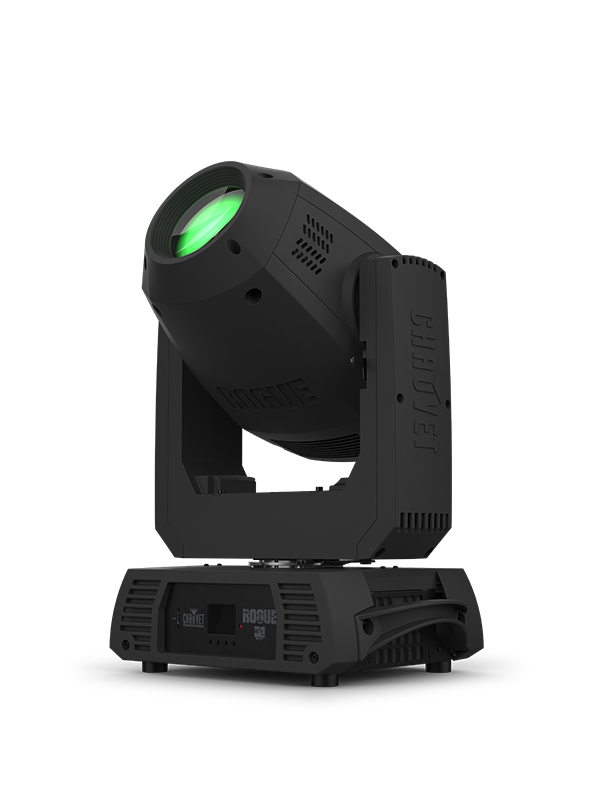

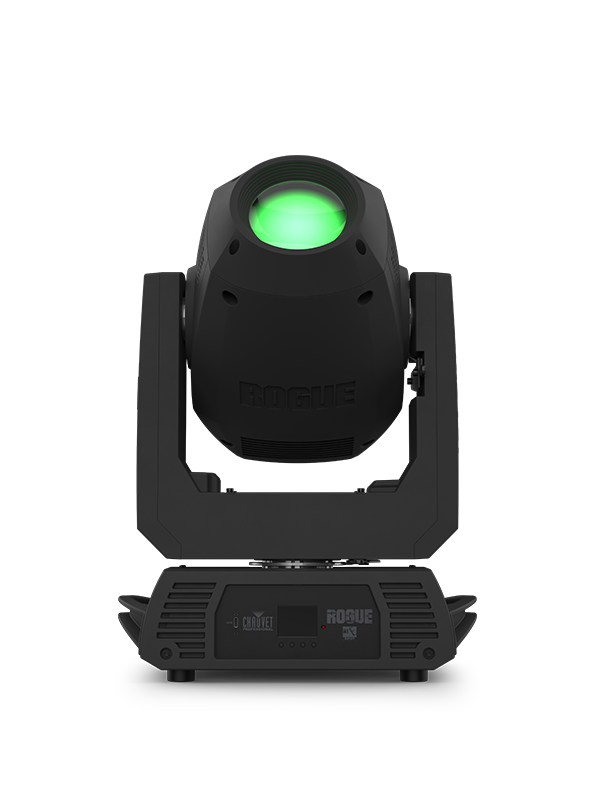

Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a color wheel with eight brilliant colors + white + split colors. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R1X Spots in your rig.

Features

  • A fully featured compact and light weight moving yoke spot fixture with an Intense 200 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and a color wheels.
  • 16-bit dimming of master dimmer for smooth control of fades
  • Perfect gobo morphing between gobo wheels
  • Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
  • Iris, 3-facet prism, and frost for beam control
  • True 1 compatible power input/output connections for power linking.

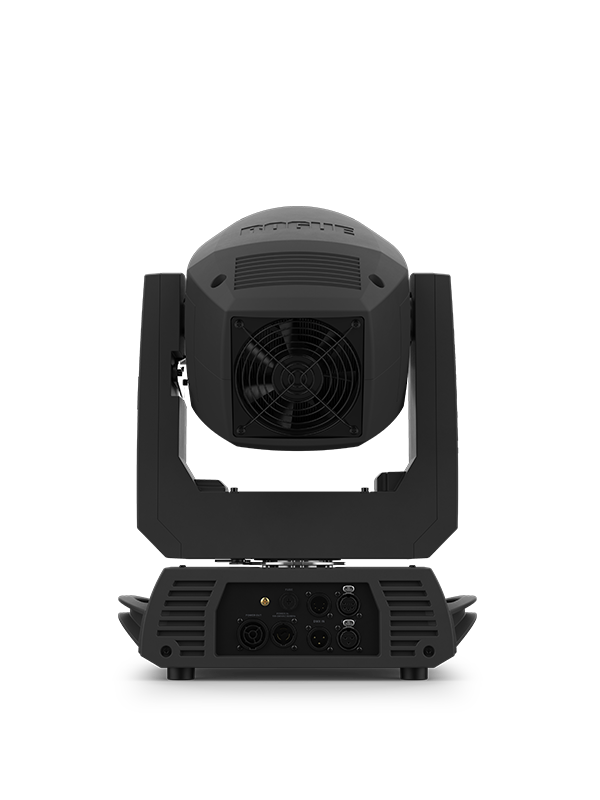

  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting.
  • Selectable LED maximum output to match legacy Rogue R1X Spots
  • Selectable PWM settings to maintain flicker-free operation on camera.
  • Simple and complex DMX channel profiles for programming versatility

Downloads

Datasheet
