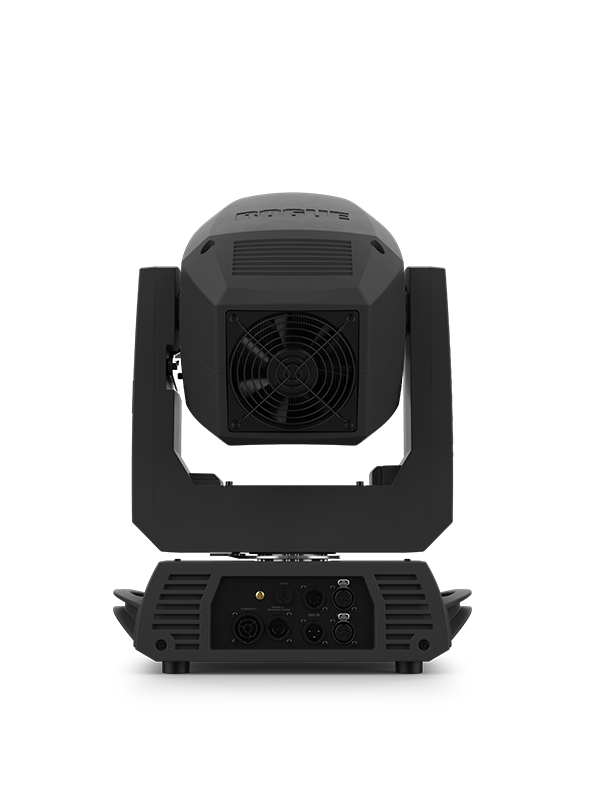

Thumb 1

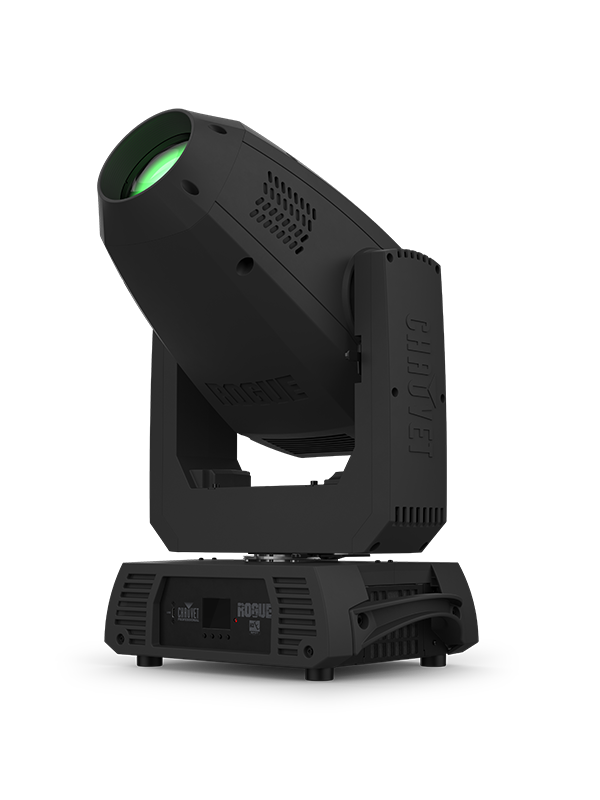

Thumb 2

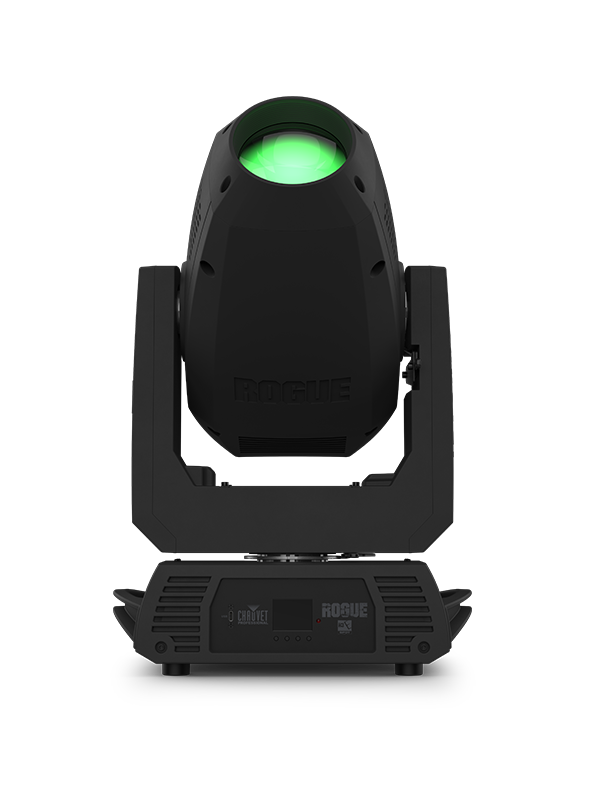

Thumb 3

Chauvet Rogue R3E Spot

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.

Features

  • A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, Zoom and two color wheels.
  • 16-bit dimming of master dimmer for smooth control of fades
  • Perfect gobo morphing between gobo wheels
  • Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
  • Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris, 3-facet prism, and frost for beam control
  • 8.4° to 42.8° Zoom range
  • True 1 compatible power input/output connections for power linking.
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting.
  • Selectable LED maximum output to match legacy Rogue R1X Spots
  • Selectable PWM settings to maintain flicker-free operation on camera.
  • Simple and complex DMX channel profiles for programming versatility
