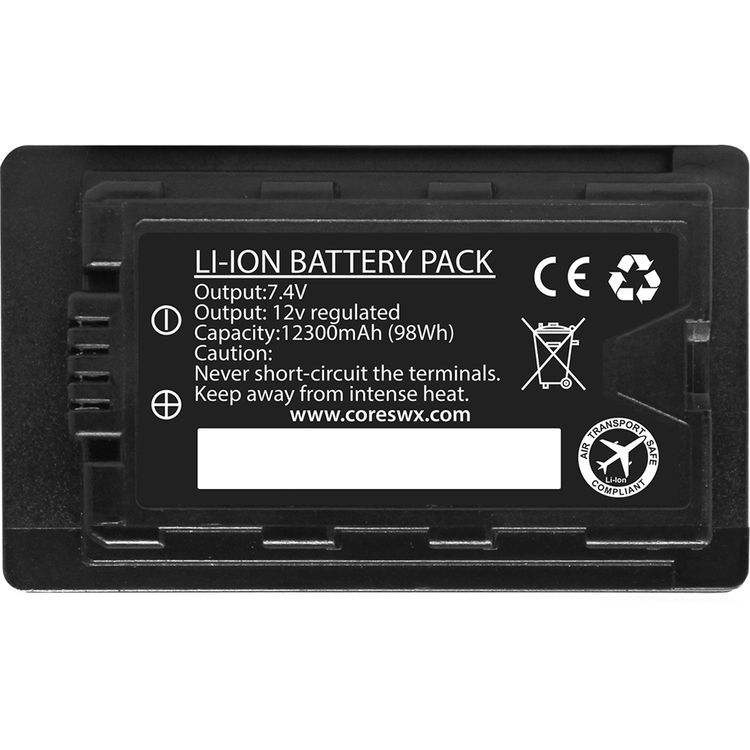

Thumb 1

Core AG-VBR Style Battery Nano-VBR98

The Nano-M series addresses the need for a more “pro” style option of power for Small Form Cine cameras. The Nano-VBR98 is specifically designed for select Panasonic Camcorders such as the Panasonic EVA1. They are equipped with a 4-stage LED gauge and a P-tap. The P-Tap is a Smart Tap that is able to carry SMBUS/smart battery data which is a feature part of future integration. This power tap will serve as a standard powertap without need of special cabling.

Features

  • Capacity: 98Wh (7.4V, 13,200mAh)
  • Operational Voltage: DC 12V–16.8V
  • Powertap Output: 12V DC (2A / 24W max)
  • Size: 4″ x 2.6″ x 1.65″
  • Weight: 0.9 lbs
  • Normal Runtime: 5 hrs (based on Panasonic EVA1 draw)

Downloads

Datasheet
