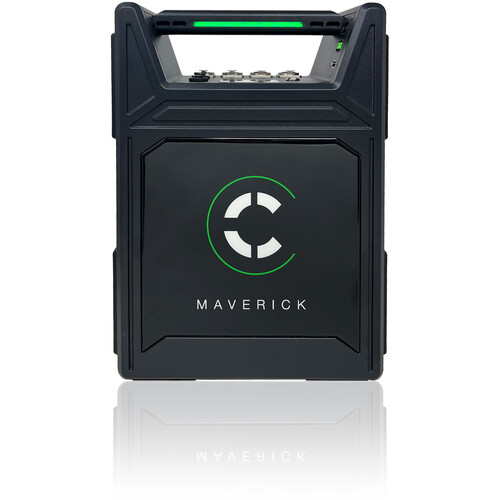

Core Maverick MV6

The Maverick MV6 is a high-capacity block battery system built to power demanding cinema, broadcast, and lighting applications both on location and in studio. With simultaneous 14V and 28V output support—each capable of handling a 20A load—the MV6 ensures stable power distribution to cameras, high-draw LED lighting, and production gear without the need for multiple battery units. Premium Nickel Metal Hydride cells provide reliable long-cycle performance with minimal degradation, making it a rugged, flight-safe solution ideal for international productions. The modular design enables easy servicing and quick component swaps, maximizing uptime and ROI for rental houses and production teams alike.

Features

  • Cell Chemistry: Nickel Metal Hydride, Travel Safe
  • Capacity: 605Wh (14.4V, 42.0Ah, max rating 639Wh)
  • Size: 9.56” x 13.7” x 5.3”
  • Weight: 28.3 lbs
  • Voltage Output: 2x XLR 4p @ 14V (12–17V DC) , 2x XLR 3p @ 28V (regulated)
  • Max Load: 40A (20A @ 14V, 20A @ 28V)
  • Built-in Protections: Temperature (internal), Voltage (internal), Current (resettable exterior and internal)
  • Capacity Monitoring: Backlit LCD and LED Handle
  • Aux Output: 2x P-Tap (10A, 14.4V unregulated)
  • USB Output: 1x USB-A (5V, 3A)
  • Charge Time: 5 hrs with built-in charger
  • AC Mains Input: 100–240VAC, 50/60Hz
  • Build: Cast and Sheet Aluminum
