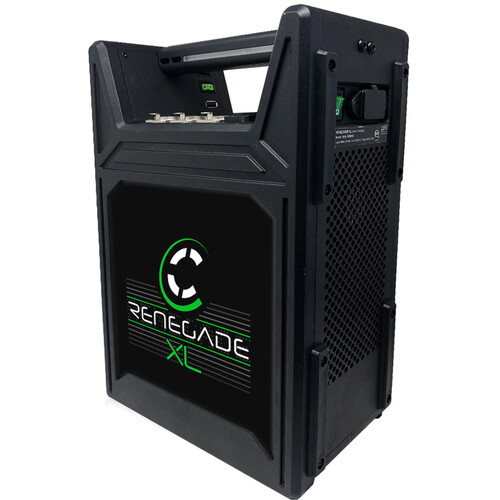

Core Renegade® XL RNG-XL1

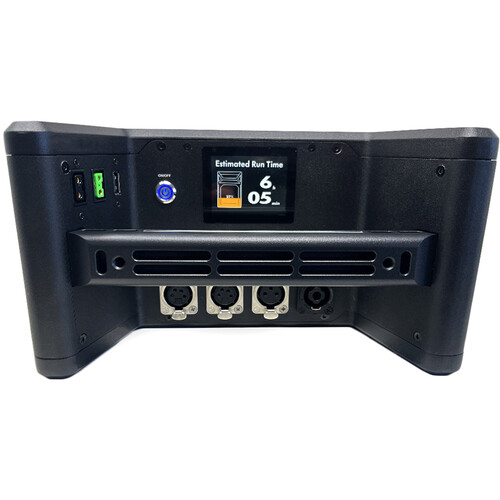

The Renegade XL is a high-performance block battery system built for cinema, lighting, and broadcast professionals who need scalable power with real-time visibility. Its advanced full-color OLED display provides detailed diagnostics, including standby estimates based on a 100W load, real-time runtime during use, and precise countdowns while charging. The OLED interface improves transparency over traditional LCDs, allowing production teams to plan more effectively. With a massive 1376Wh capacity, the XL supports up to 30A total output—ideal for large LED arrays, cinema cameras, and high-draw setups. It’s available in two configurations: the RNG-XL1 with dual 14V XLR and 28V XLR/Powercon outputs for hybrid use, and the RNG-XL48 with dual 48V Powercon outputs delivering up to 1440W for lighting-intensive applications.

Features

  • Cell Chemistry: Li-Ion
  • Capacity: 1376Wh (14.8V, 93Ah)
  • Size: 9.56” x 13.7” x 5.3”
  • Weight: 32.8 lbs
  • Voltage Outputs: 2x XLR 4p 14V (DC 11–17V) , 1x XLR 3p @ 28V (regulated) , 1x PowerConn @ 48V (regulated)
  • Max Load:
  • 12A @ 14V , 12A @ 28V ,15A @ 48V
  • Built-in Protections: Temperature (internal), Voltage (internal), Current (resettable external and internal)
  • Capacity Monitoring: OLED Display and LED Handle
  • Aux Output: 2x P-Tap (10A, 14.4V unregulated)
  • USB Output: 1x USB-A (5V, 3A)
  • Charge Time: 5.5 hrs with built-in charger or 2 hrs with SFQ40 external charger
  • AC Mains Input: 100–240VAC, 50/60Hz
  • Build: Cast and Sheet Aluminum
