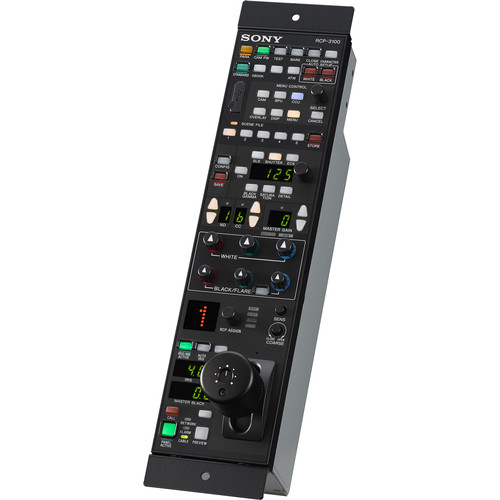

The Sony RCP-3100 is a compact joystick-type remote control panel for HDC/HSC/HXC series system cameras, optimized for rack mounting and multi-camera workflows.
Features
Slim Rack Design: 80 mm wide body fits up to 5 units in a 19-inch EIA rack for efficient space use.
Joystick Controls: Dedicated joystick for precise iris and master black adjustments, with direct push buttons for camera/CCU/BPU access.
Assignable Functions: Customizable switches and knobs for paint operations (shutter, gain, etc.), multi-function LEDs, and user-defined menus.
Network Connectivity: LAN (10/100/1000Base-T) with PoE (IEEE802.3af Class 2) support; CCA-5 cable option; Web GUI for PC-based setup.
System Integration: Works with CNU-700 for multi-camera control (up to 24 cameras via two CNUs); EXT I/O via D-Sub 9-pin.
Power and Build: DC 10.5-30V input (4W consumption), 80 x 310 x 125 mm size, 1.4 kg weight; operates 5-40°C
