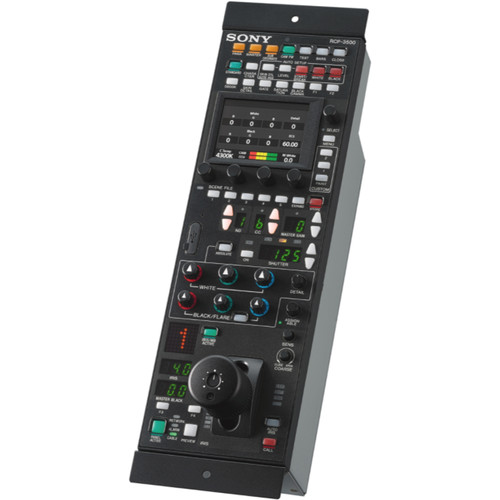

The Sony RCP-3500 is a networked remote control panel designed for HDC, HSC, and HXC series studio cameras, serving as the successor to the RCP-1500 with enhanced usability.
Features
Touch Panel LCD: Higher-resolution, brighter display (640x480) with touch functionality for intuitive operation, joystick for iris/master black adjustments, and customizable menus.
Assignable Controls: 9 customizable buttons and knobs for functions like shutter, gain, and painting; supports spare LEDs for status indication and SW Customize for user-defined menus.
Network Connectivity: 1000Base-T LAN with PoE (IEEE802.3af Class 2), plus CCA-5 cable support; Web UI for remote setup from PC.
File Management: USB flash drive for saving/loading scene files (5+ expandable), Reference files, and CAM/CCU settings; direct Scene file control.
HDR Support: Organizes HDR-related files from HDRC-4000, including SR Live MetaFile linking for metadata and SDI paths.
I/O and Integration: D-Sub 9-pin EXT I/O with "Call Out" for external signaling; AUX multi-connector; rack-mountable (up to 4 in 19-inch EIA).
Power and Build: DC 10.5-17V input, 10W consumption, compact size (102 x 310 x 67 mm), 1.7 kg weight; operates 5-40°C.
