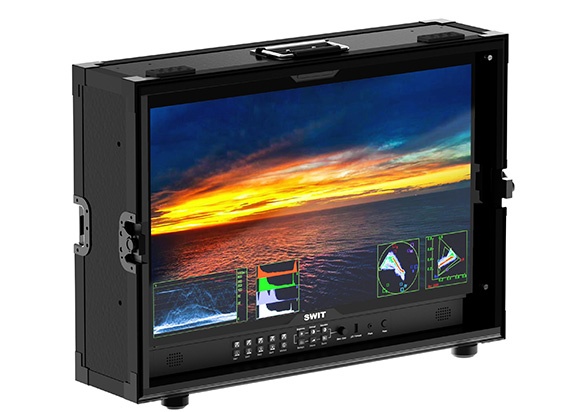

SWIT FM-U245HDR 23.8 inch 4K 1000nits 4×12G-SDI HDR Field Monitor

FM-U245HDR is a 23.8-inch 4K monitor for lmset or live productions. The 1000nits high bright display panel allows a clear view even under direct sunlight, and HDR enabled. The pre-installed ight case and all around protections are for convenient carrying away and eld setup.

Features

  • 23.8-inch LCD panel, 3840×2160 resolution
  • 1000nits high bright LED backlight
  • HLG/PQ/S-log3 HDR, payload ID auto setting
  • 12G-SDI 4-in 4-out, 8K input ready, HDMI® 2.0 input
  • Quad-view / pic-by-pic / pic-in-pip
  • 3D LUT auto self-calibration without PC
  • 18-bit and zero latency video processing
  • Built-in multi camera Delog LUTs
  • 13× user 3D LUTs cubes upload by USB-A
  • Waveform / vector scope / CIE scope / histogram
  • Eye pattern / focus assist / zebra / false color
  • Anamorphic de-squeeze 1.33/1.5/1.6/1.8/2/MAG
  • Audio meters / Lissajous / 5.1 & 7.1 surround pattern
  • On-board V-mount battery plate
  • Shipping with flight case and various accessories
  • Junior & baby double riser stand mounting

Downloads

Datasheet
