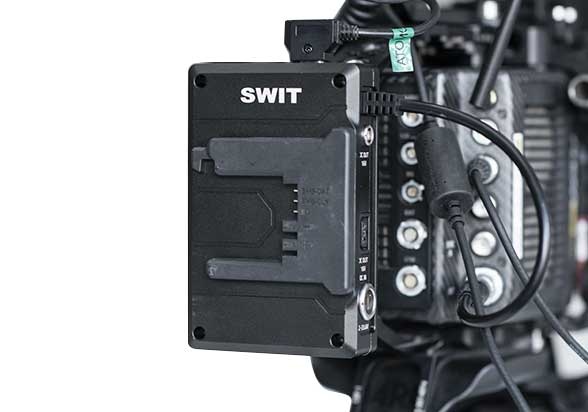

Thumb 1

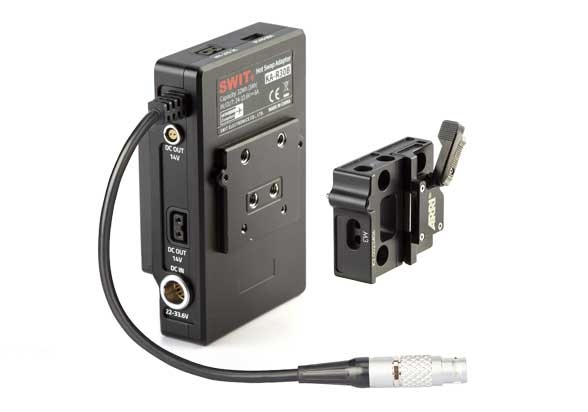

Thumb 2

SWIT KA-R30B B-mount Hotswap Plate for MINI / MINI LF

KA-R30B is a B-mount hot-swap plate for ARRI Alexa MINI / MINI LF install, power cameras at 28.8V (22-33.6V) by 8-pin DC-IN. When remove the B-mount battery, 8-pin DC output Reg. 28V for hotswapping. You don’ t need to switch off the camera when changing battery.

Features

  • Dedicated for Alexa MINI / MINI LF install
  • B-mount battery attach
  • 8-pin LEMO output to camera
  • 28V, 32Wh 3Ah battery cells inside
  • 200W constant high load
  • At least 2 minutes run time
  • 120 seconds countdown display
  • 2× D-tap regulated 14V output
  • 1× 2-pin LEMO regulated 14V output
  • USB 5V/2A ×1 power output
  • 22–33.6V 8-pin input for power station hotswap
  • Aluminum CNC unibody housing
  • Multiple circuit protections

Downloads

Datasheet
