SWIT LA-R160 16-ch DMX512 Light Console

SWIT - Lighting & Grip

SWIT LA-R160 16-ch DMX512 Light Console
Thumb 1
Thumb 2

SWIT LA-R160 16-ch DMX512 Light Console

LA-R160 is a compact and user-friendly 16-ch DMX lighting console designed for simplicity without sacrificing capability. Fully compliant with the DMX512 protocol, built for anyone to start controlling lights instantly—no experience required.

Features

  • Portable DMX-512 standard console

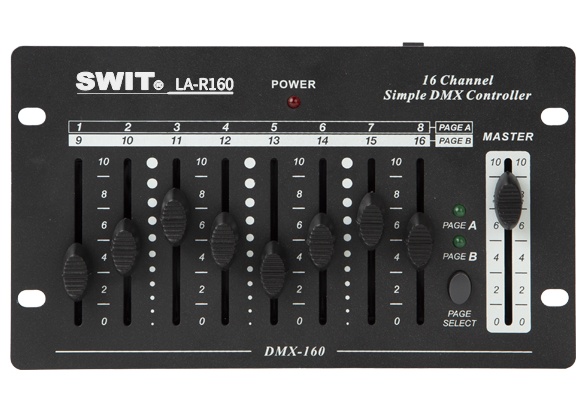

  • 8× faders with A/B page switch to 16 channels
  • 1× Master fader control all 16 channels

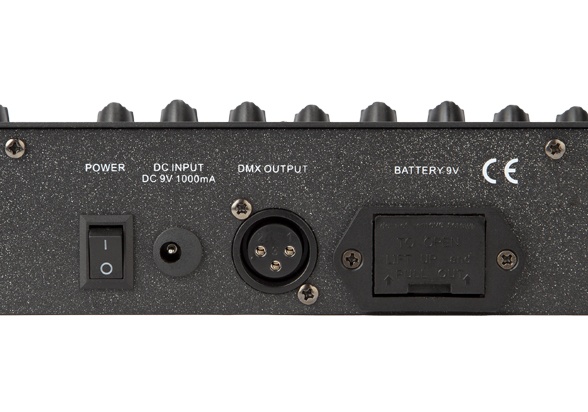

  • 3-pin female DMX port with 5-pin converter
  • AC-DC 9V 1A input, 2W power consumption
  • Support 9V PP3 battery power
  • 9.5-inch half rack size 3U install

Downloads

Datasheet
