SWIT M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor

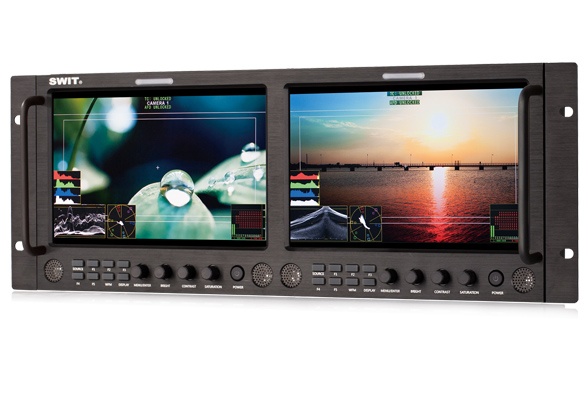

The M-1093F adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 1000:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

Features

  • 9-inch IPS LCD Panel ×2
  • 1920×1200 resolution, 1000:1 contrast
  • 19-inch 4U rack mounting, ±30° rotatable
  • 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring
  • 16-ch Embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vector scope, histogram R/G/B/Y
  • AFD, H/V delay, R/G/B/Mono, False color
  • TSL UMD and text TALLY display
  • Zebra stripes, Peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • TALLY light and GPI control
  • USB firmware upgrade
