SWIT MATRIX-B8 8×100W Ultra fast B-mount Wall Charger

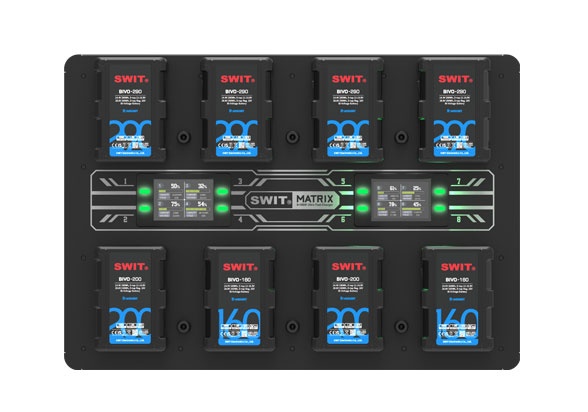

MATRIX-B8 is an 8-ch simultaneous B-mount wall charger with 33.6V 100W ultra fast charging speed each channel, charging SWIT HB-A290B, BIVO series, and compatible with other B-mount batteries that support 33.6V charging voltage like CoreSWX.

Features

  • 8-ch simultaneous B-mount fast charging
  • DC33.6V, 3A, 100W for ≥160Wh batteries
  • DC33.6V, 1.3A, 44W for <160Wh batteries

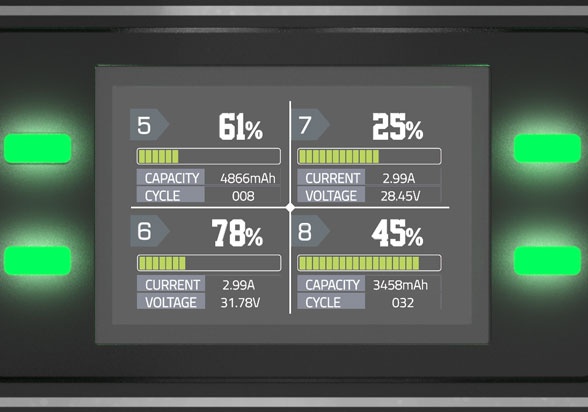

  • 2× 3.5-inch color LCD info display
  • Battery cycle times display
  • Large LED charging indicators

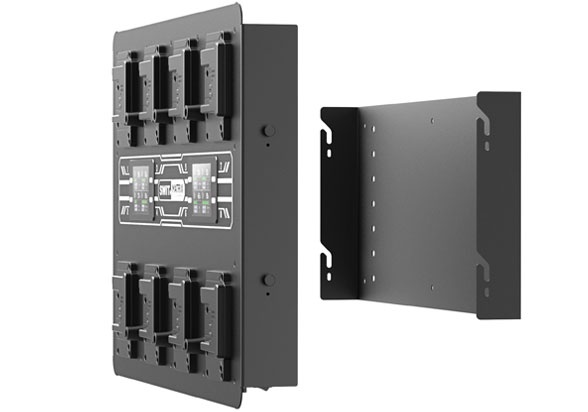

  • Wall mounting or 19-inch rack install
