SWIT S-1243F 23.8-inch Full HD Waveform Studio LCD Monitor

SWIT - Cameras & Imaging

SWIT S-1243F 23.8-inch Full HD Waveform Studio LCD Monitor
Thumb 1
Thumb 2
Thumb 3

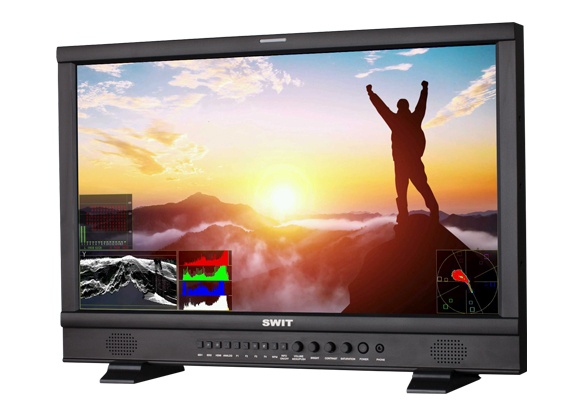

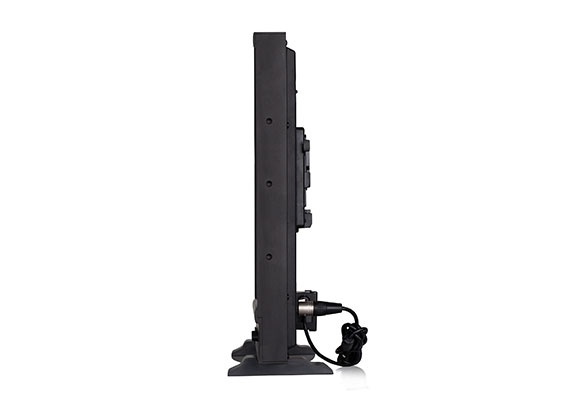

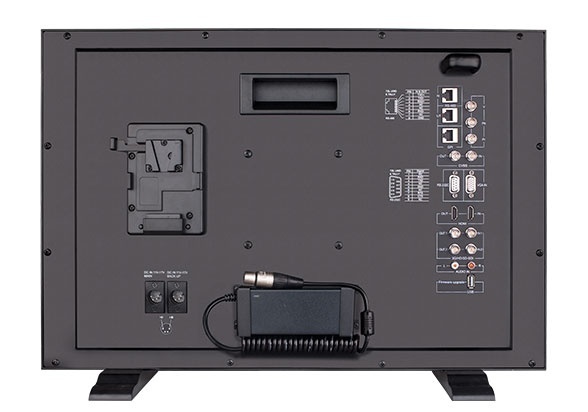

SWIT S-1243F 23.8-inch Full HD Waveform Studio LCD Monitor

S-1243F adopts a 23.8 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast for accurate color repro- duction. The viewing angle is Horizontal: 178° / Vertical: 178°.

Features

  • 23.8-inch LCD Panel, 1920×1080 resolution
  • 2K/3G/HD/SD-SDI( x2 ), HDMI® monitoring
  • Y/Pb/Pr, VGA, CVBS monitoring
  • 3DLUT 17x17x17 color calibration
  • Built-in Multiple De-log 3DLuts
  • User LUTs upload by USB
  • 16-ch Embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vector scope, histogram R/G/B/Y
  • Peaking focus assist (red/blue switch)
  • AFD, Timecode, H/V delay

Downloads

Datasheet
